Panama - Linton Bay Marina - Repair of Bulkheads

We detected considerable movement of internal furniture panels, and suspected that we had a major problem with our Main Bulkhead.

Nicholas removed all the furniture and wall cladding in the Starboard Forward Cabin, and our fears were confirmed.

Inside the Starboard Forward Cabin:

Main Bulkhead looking aft - Vertical crack


Tabbing no longer attached to the bulkhead


Main Bulkhead, aft side looking forward - tabbing has separated from the bridge deck


Main Bulkhead Aft Side - Vertical tear

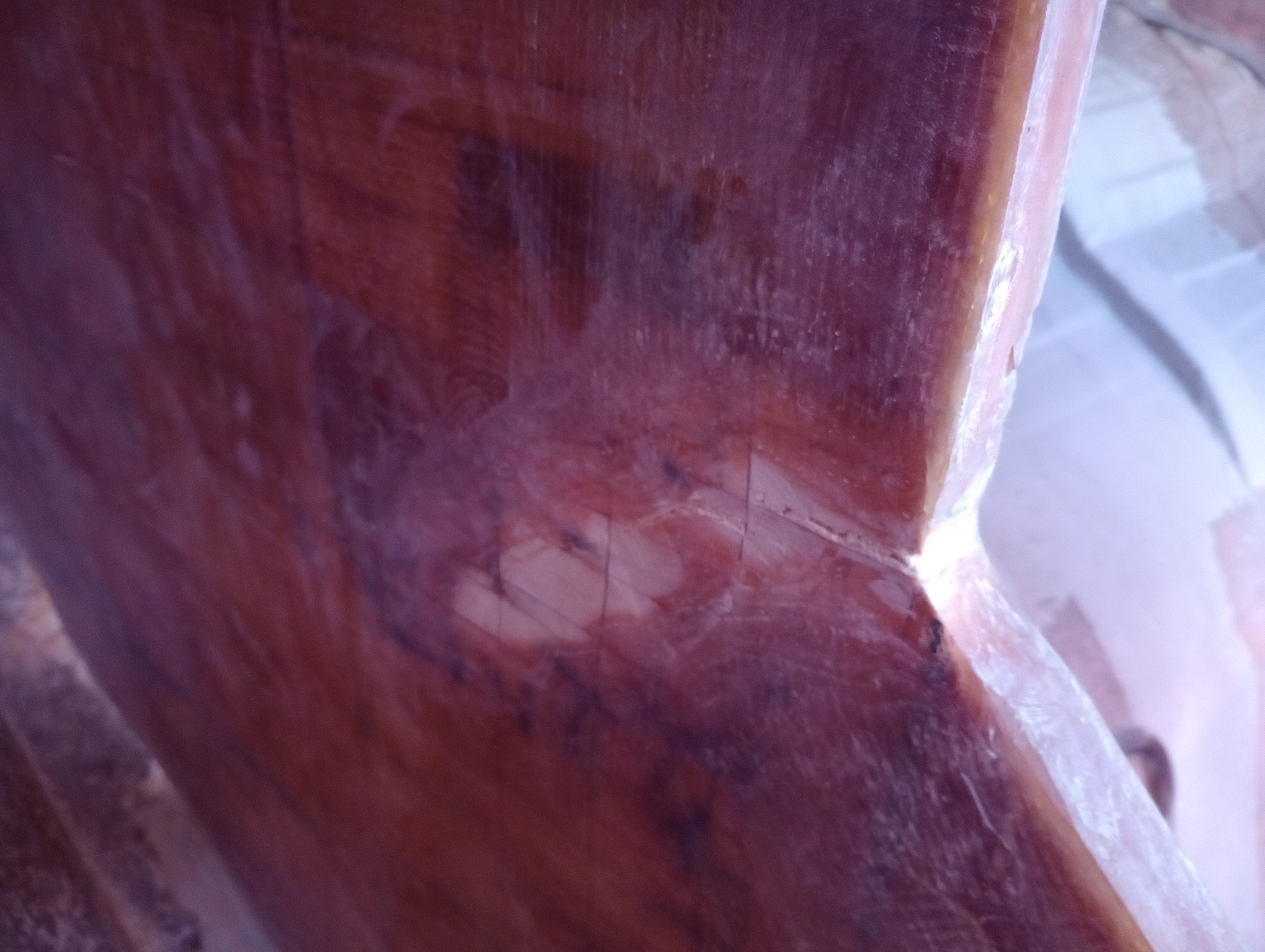

More cracks in the Main Bulkhead



Main Bulkhead looking aft, outboard side

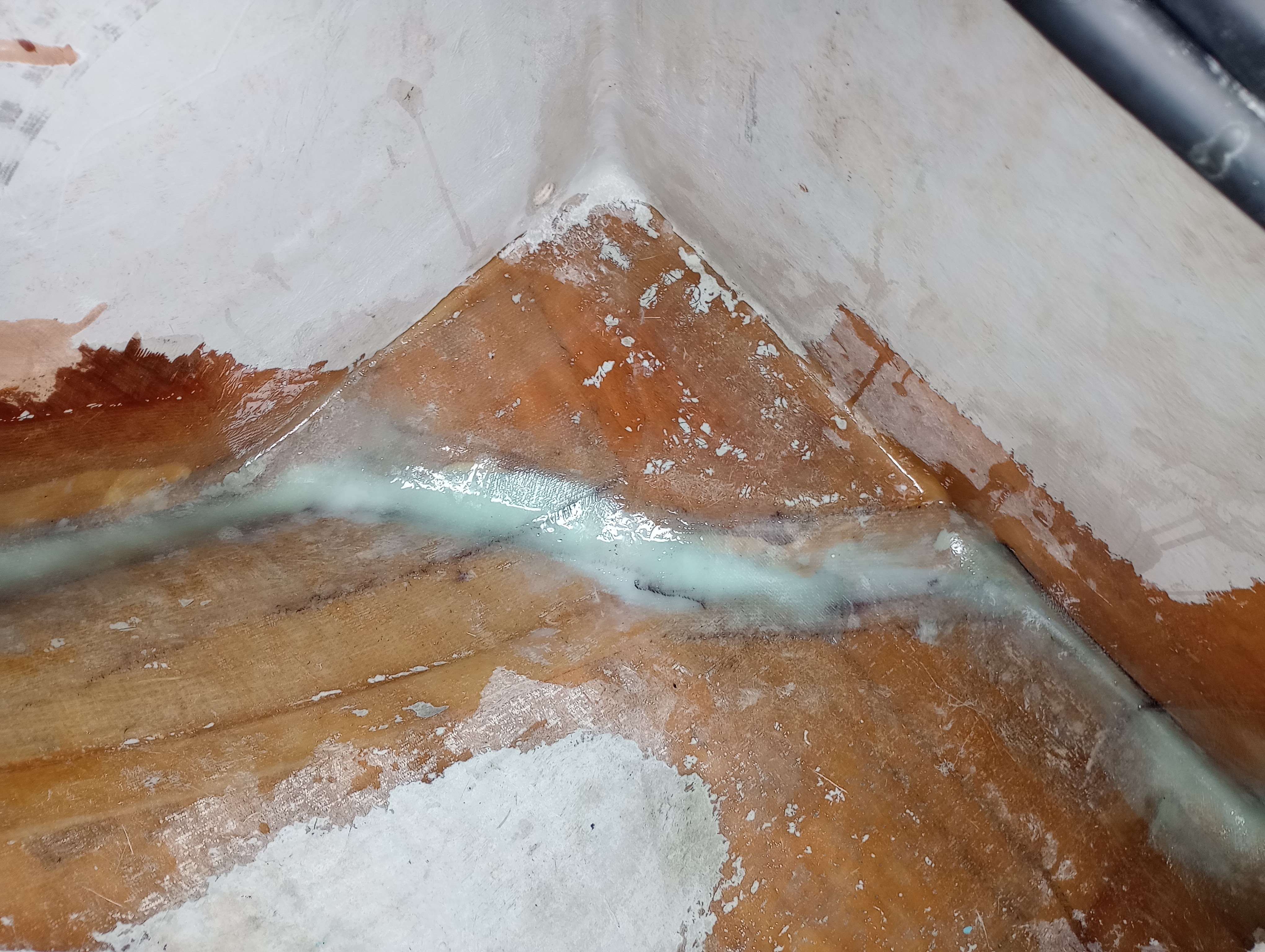

Tear-out on underfloor hull half bulkhead

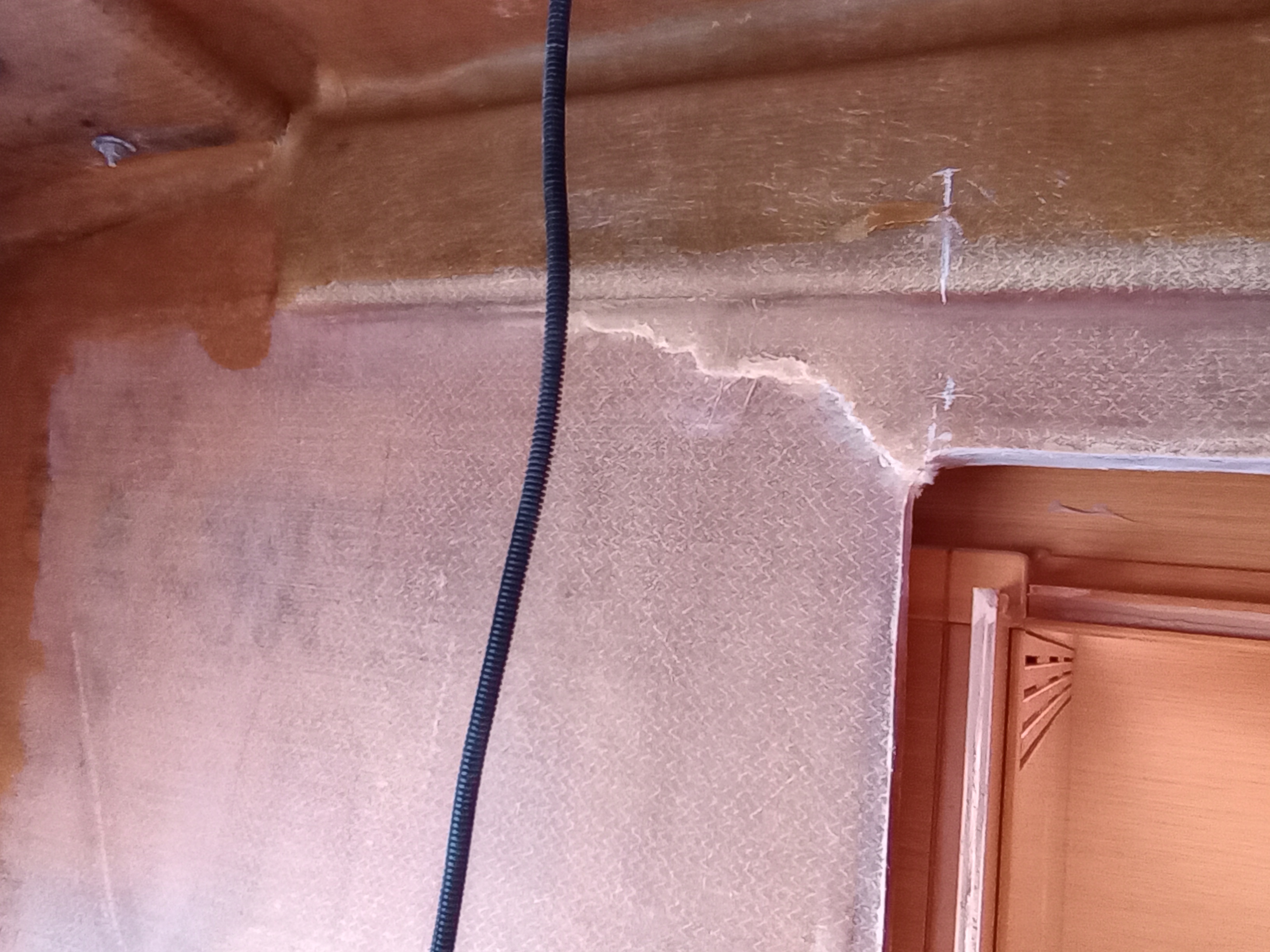

Secondary Bulkhead - Cabin Forward Wall - cracked with tabbing tear out


Secondary Bulkhead - Cabin Forard Wall Outboard side - and deck delaminating




Secondary Bulkhead - in Heads Area looking aft - tabbing delaminating and cracking


Secondary Bulkhead - in Exterior Locker - view of the crack and continuation of tear in the locker


We then Hauled Meshugga out of the water on the Travel-lift, and loosened the rigging. Meshugga was set down on bridge deck stands to straighten and parallel the hulls.

Nicholas and Matthew using a water level to ensure the hulls are exactly level and parallel

Sandbags to prevent damage to underside








Grinding off the tabbing, sanding all surfaces and repping the area for repair














Additional support structures - 1” marine ply

Plastic sheeting protecting the boat from fiberglass dust

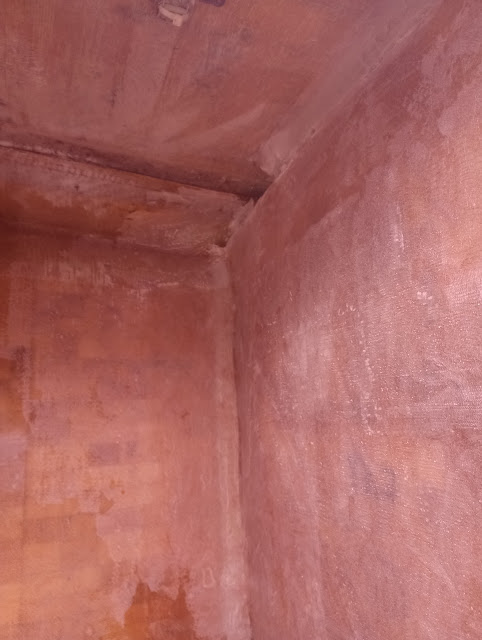

All surfaces sanded. Clean all dust and triple acetone scrub before glassing.
Epoxy and biaxial glass only. All tabbing = progressive layers.
Main bulkhead additional 4 layers each side.
Secondary bulkhead plus all other wall an additional 2 layers.
Building Fort Knox!









Installing a 6 biaxial layer “plate” using Sparbond (super strong epoxy glue) to the relatively inaccessible aft side of the Main Bulkhead crack.
Using screws to clamp the plate to the Main Bulkhead - later removed before applying glass.

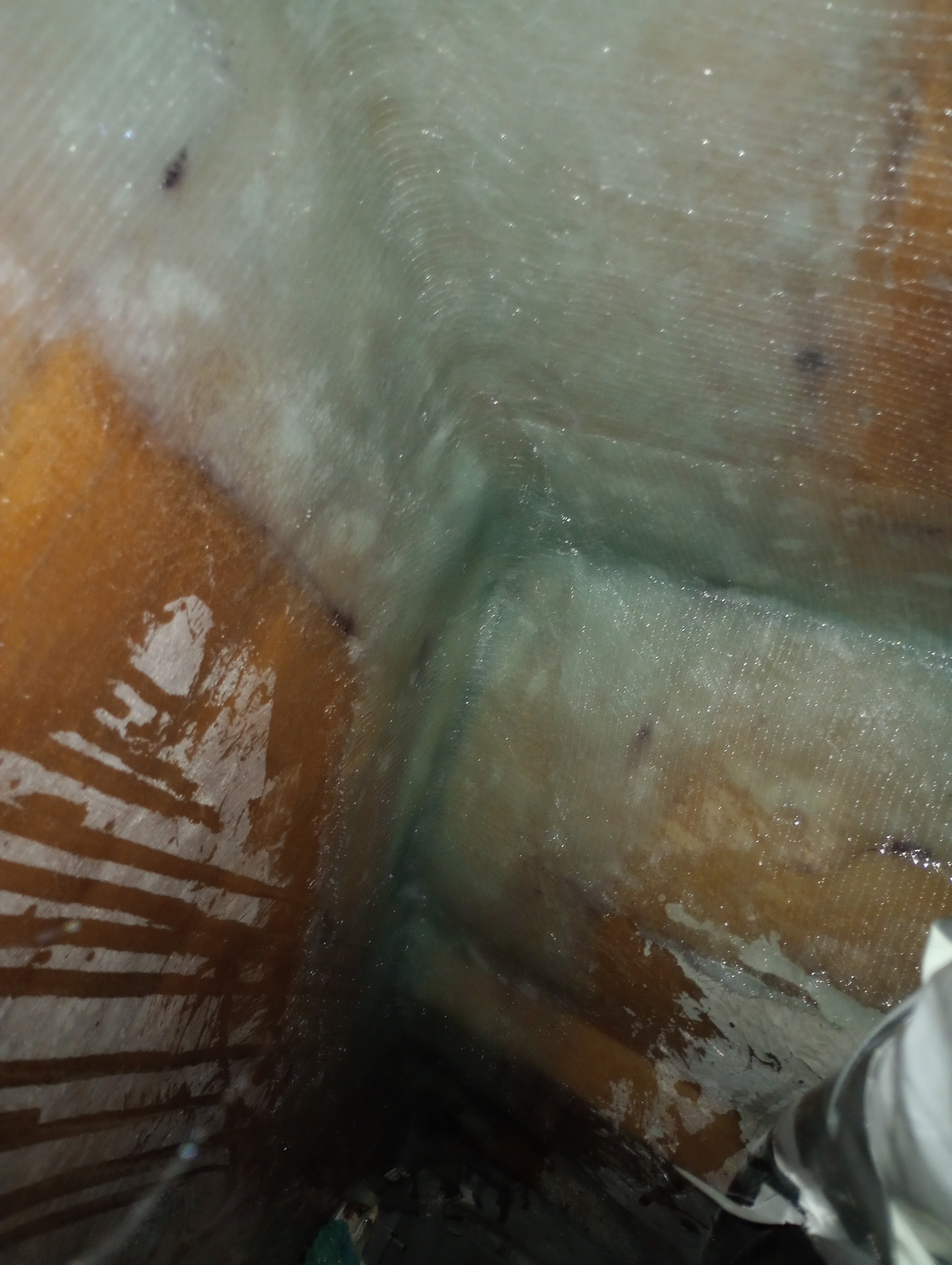

Plate glassed to Main Bulkhead aft side to tie everything together

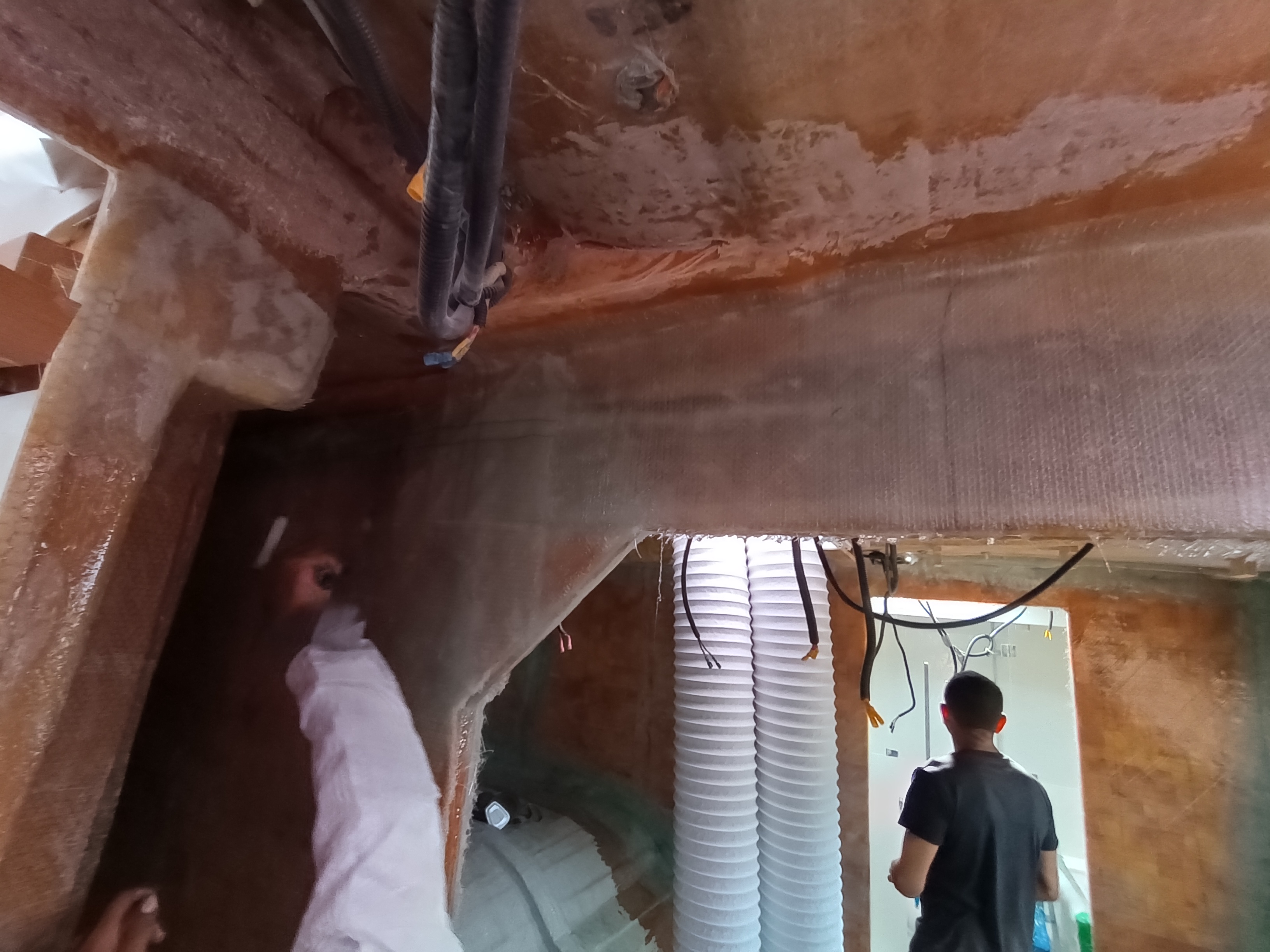

Applying additional layers to Main Bulkhead forward side, plus tabbing to tie the plate to that skin

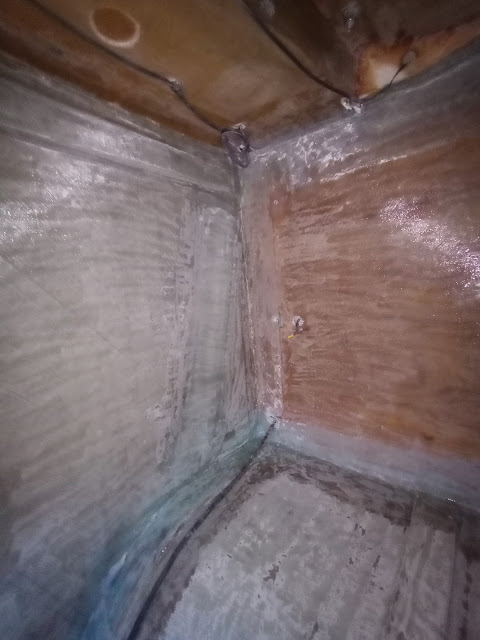

Glassing complete










Sand all surfaces and finish with epoxy paint




Now time to re-install all the wall cladding and furniture.
